Customers searching for NIR cameras often assume that near-infrared imaging requires a dedicated NIR-enhanced sensor. When such cameras are difficult to identify, it can appear that certain NIR applications are not supported. In practice, many near-infrared use cases can be addressed effectively using standard monochrome cameras when combined with appropriate filters and infrared illumination.
Because monochrome sensors do not use a Bayer color filter mosaic, they retain high sensitivity across the 700–1000 nm near-infrared range, making them well suited for applications such as machine vision, inspection, automation and low-light imaging.
When paired with NIR-pass filters and matched IR light sources, these cameras can deliver high-contrast, stable and repeatable NIR images comparable to those produced by cameras specifically marketed for near-infrared use.
An NIR camera is a camera capable of detecting light in the near-infrared spectrum, typically between 700 and 1000 nm.
Many cameras marketed as “NIR-enhanced” rely on standard monochrome sensors with design optimizations intended to increase sensitivity in this wavelength range.
Modern monochrome image sensors, however, already provide strong native response in near-infrared wavelengths. Since they are not limited by color filters, they can efficiently capture both visible and NIR light, making them suitable for a wide range of near-infrared imaging tasks without requiring a specialized sensor variant.
For any near-infrared camera, the most important performance metric is quantum efficiency (QE) rather than marketing terminology. High-quality monochrome sensors typically exhibit:
In many practical scenarios, the NIR sensitivity of a standard monochrome sensor is comparable to that of an NIR-enhanced version. For machine vision, inspection and automation tasks, this level of performance is more than sufficient.
Users searching for near-infrared cameras frequently expect products explicitly labeled as “NIR cameras.” When they do not find such labeling, they may wrongly assume:
This misunderstanding shifts attention away from flexible and proven solutions. Overall system performance depends more on the sensor’s QE, optical filtering and illumination than on whether a camera carries an NIR-specific label.
While the NIR-enhanced sensor provides extended sensitivity at longer near-infrared wavelengths, the standard monochrome sensor already offers strong NIR performance for common wavelengths such as 850 nm when combined with appropriate filtering and illumination.

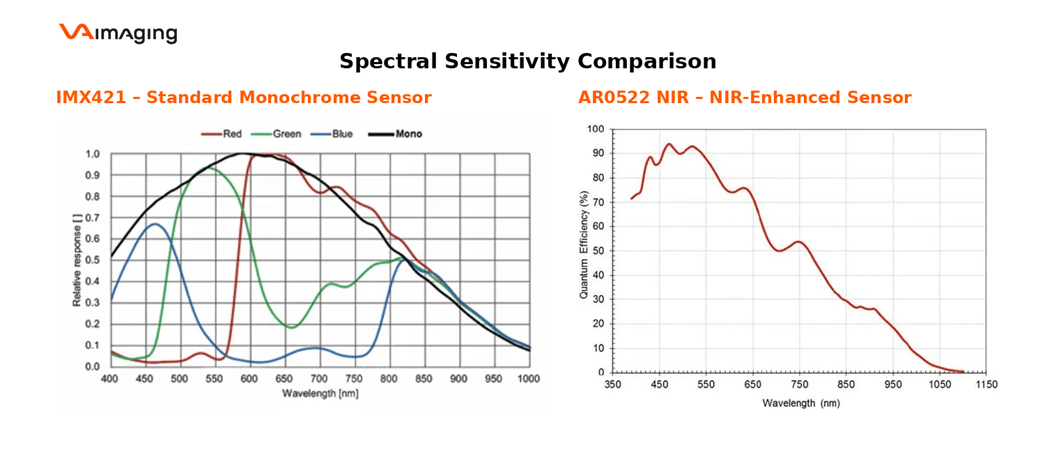

Spectral sensitivity comparison between a standard monochrome sensor (IMX421) and an NIR-enhanced sensor (AR0522 NIR).
A reliable NIR imaging setup depends on several components working together. In most cases, performance is shaped less by whether a camera is marketed as “NIR” and more by how well the camera, filter, illumination, and optics are matched to the application.
A suitable monochrome camera should provide the sensitivity and low-light performance needed for near-infrared imaging.
These cameras naturally detect near-infrared light up to approximately 1000 nm, making them compatible with most NIR machine vision applications.
Optical lens filters define which wavelengths reach the sensor and strongly influence image contrast and consistency.
The right filter helps reduce ambient light interference and improve image repeatability in changing production environments.
An IR LED illuminator or spot light matched to the filter wavelength provides controlled and repeatable lighting.
Correct placement and diffusion are essential to avoid hotspots and achieve uniform illumination across the field of view.
For applications requiring flexible or higher-output infrared lighting, IR LED spot illuminators are commonly used. A multiwavelength LED spot allows adaptation to different NIR bands depending on the filter and application, while a dedicated IR LED spot is optimized for fixed near-infrared wavelengths.
Lens performance can also affect NIR image quality. IR-corrected lenses are often a good choice where focus stability is important, particularly in systems that use both visible and near-infrared light. In less demanding applications, a standard machine vision lens may still perform well if it offers suitable transmission and can be focused reliably at the target NIR wavelength.
In applications where focus stability or combined visible and NIR imaging matters, lens selection should be reviewed as part of the overall optical design rather than treated as an afterthought.
NIR performance comes from system design, not product labeling.
For most industrial applications, the best results come from treating the setup as a complete imaging system. Matching the camera, filter, illumination, and optics to the wavelength, working distance, and inspection goal is usually more important than starting with a camera marketed as a dedicated NIR model.
Dedicated NIR-enhanced sensors can be beneficial in specialized situations, such as:
In these cases, cameras specifically designed and optimized for near-infrared performance may offer advantages. For users working on such demanding applications, it can be useful to review a dedicated selection of NIR cameras to compare sensor technologies, wavelength optimizations and performance characteristics before choosing a solution.
For the majority of industrial, automation and machine vision NIR applications, however, a standard monochrome camera combined with appropriate filtering and infrared illumination delivers excellent results without the need for a specialized NIR-enhanced sensor.
Using monochrome cameras for near-infrared imaging offers several benefits:
Standard monochrome cameras are available with a wide variety of sensors and resolutions, making it easier to match the camera to the specific requirements of an NIR application. Options typically range from low-resolution sensors optimized for sensitivity and low-light performance to high-resolution sensors suitable for detailed inspection and measurement tasks, as well as different sensor sizes, pixel pitches and interface standards.
This variety allows users to adapt a single monochrome camera platform to multiple NIR use cases by selecting the appropriate sensor, resolution and optical configuration without being limited to a small selection of specialized NIR camera models.
When selecting a near-infrared camera system, key parameters include:
Defining these parameters helps ensure the correct combination of camera, filter and illumination. If you have questions about choosing the right NIR camera setup for your application, our imaging specialists can help evaluate your requirements and recommend a suitable configuration.
A dedicated NIR-enhanced camera is not a requirement for effective near-infrared imaging. In many cases, a standard monochrome camera, combined with appropriate NIR filtering and infrared illumination provides a robust, flexible and cost-effective solution for a wide range of NIR applications.
Understanding how near-infrared imaging systems work makes it easier to select the right components and to achieve reliable results without unnecessary complexity.
