Understanding Stereovision Cameras: How They Work and How to Choose One
Gaspar van Elmbt
In today’s rapidly advancing world of 3D imaging and machine vision, stereo vision cameras have become a cornerstone technology for depth perception, spatial awareness, and real-time measurement. Whether used in robotics, industrial automation, autonomous navigation, or augmented reality, stereo vision enables machines to perceive the world in three dimensions, just like humans do.
Understanding how this technology works is essential before choosing the right camera for your specific needs. This article explains what a stereo vision camera is, how it works, and the key factors to consider when selecting a 3D stereo vision system.
Table of contents
What Is a Stereo Vision Camera?

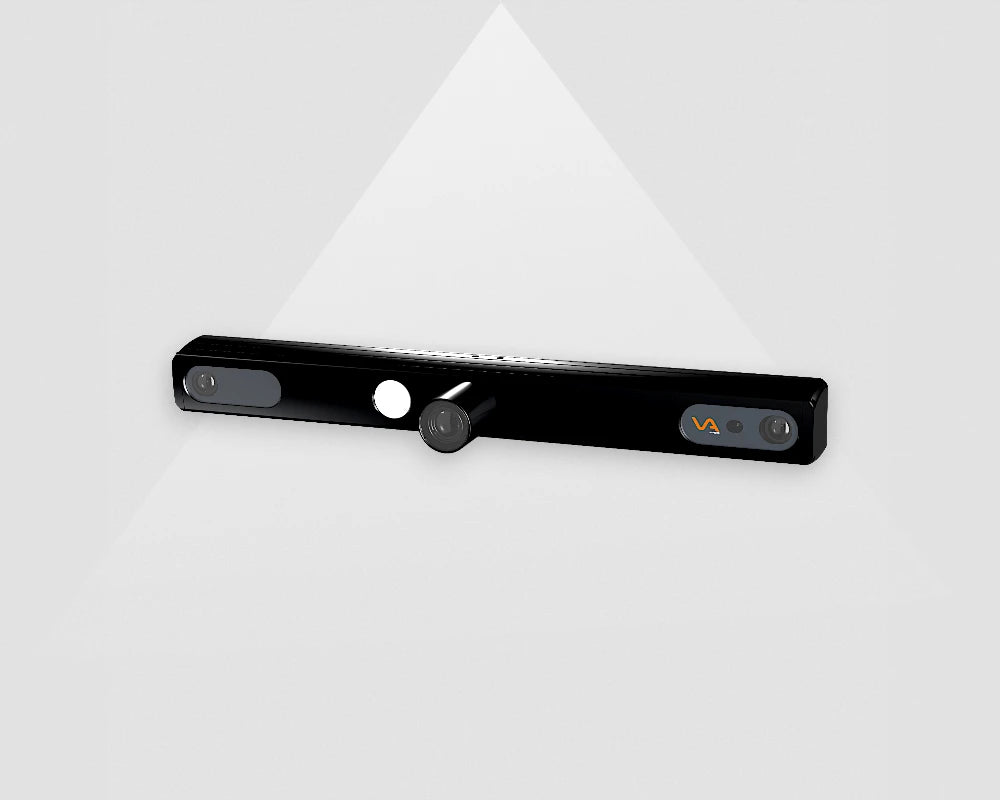

A stereo vision camera is a 3D imaging system designed to simulate human binocular vision. It consists of two or more cameras mounted side by side, separated by a fixed distance known as the baseline. Each camera captures the same scene from slightly different angles, creating a pair of images that contain small variations in the position of objects; these variations are called disparities.
By analyzing these disparities, the system can determine how far away each object is from the cameras. The larger the disparity between the left and right images, the closer the object appears; the smaller the disparity, the farther away it is. Using this information, stereo vision cameras generate a depth map or 3D point cloud representing the distance and shape of objects within the scene.
Stereo vision cameras are widely used in fields that require accurate spatial understanding, such as robotics, autonomous vehicles, quality inspection, medical imaging, and augmented reality, while providing a scalable and flexible approach to 3D perception, offering high accuracy without the need for active illumination or specialized environments.
How Does a Stereovision Camera Work?
A stereovision camera works based on the geometric principle of triangulation. Just as human eyes estimate distance by comparing how an object appears from each eye’s perspective, stereo cameras measure depth by comparing images from two slightly offset viewpoints.
When the two cameras capture images simultaneously, each pixel in one image corresponds to a slightly shifted pixel in the other. The system then uses stereo matching algorithms to find these corresponding points. The horizontal difference between them, known as disparity, is inversely proportional to the distance of the object from the camera. Using the known baseline and focal length, the camera calculates the exact depth of each point in the scene.
To perform these calculations accurately, the system undergoes camera calibration and image rectification. Calibration ensures the optical parameters of both lenses are known, including focal length, distortion, and alignment. Rectification adjusts the captured images so that corresponding points lie along the same horizontal line, simplifying disparity calculation.
Modern stereo vision algorithms go beyond basic triangulation. They include filtering, smoothing, and advanced correspondence methods like semi-global matching or deep-learning-based stereo networks. These techniques handle real-world challenges such as textureless surfaces, repetitive patterns, and occlusions, delivering more accurate and stable 3D data even under difficult conditions.
How to Select a 3D Stereo Vision Camera
Selecting the right 3D stereo vision camera requires balancing performance, environment, and application requirements. Several factors play a key role in determining which camera will deliver the most accurate and efficient depth results.
One of the first considerations is the baseline distance, the distance between the two lenses. A larger baseline improves depth precision at longer ranges, making it ideal for outdoor navigation or vehicle applications. However, a smaller baseline performs better for close-range tasks such as gesture recognition, robotics, or industrial inspection. Matching the baseline to your expected working distance is crucial for reliable performance.
Resolution and frame rate are equally important. Higher resolution enables more precise depth calculations because it provides more pixel detail for disparity measurement. However, higher resolutions demand more processing power and data bandwidth. If real-time performance is essential, it’s important to find a balance between image quality and speed. Read more
Additional Technical and Operational Considerations
The sensor and lens quality greatly affect the accuracy of the depth map. Both cameras must use matched optics with consistent distortion characteristics and synchronized exposure settings. Calibration stability is key, many professional stereo vision cameras come factory-calibrated to ensure immediate accuracy out of the box.
Lighting conditions can also impact stereo vision. Because the system relies on visible texture to identify correspondences, it performs best in scenes with sufficient illumination and contrast. For low-light or texture-poor environments, a stereo camera that supports active illumination is a better choice.
Another factor is processing capability. Some stereo cameras output raw image pairs, leaving depth computation to the host computer. Others feature built-in processors of FPGAs that calculate disparity and output depth data directly. Cameras with onboarding processing reduce the computational burden and simplify integration.
For industrial or outdoor use, environmental robustness is essential. Look for cameras with appropriate IP ratings to protect against dust and moisture, as well as temperature tolerance suitable for your operating conditions. The physical design should also withstand vibration and continuous operation if used in automation or mobile robotics.
Finally, consider software support and integration. A comprehensive software development kit (SDK) with calibration tools, sample code, and compatibility with platforms will make development faster and more efficient.
The Bottom Line: Choosing the Right Stereovision Camera
A 3D stereovision camera enables machines to perceive depth by replicating the principles of human binocular vision, using triangulation and disparity measurement to reconstruct accurate 3D scenes. Understanding how stereovision works provides a strong foundation for selecting the right camera for your specific use case.
When choosing a stereovision camera, it’s essential to consider factors such as baseline distance, resolution, sensor and lens quality, lighting conditions, processing capability, and environmental durability. Each of these parameters directly influence the precision and reliability of depth perception.
With careful selection and proper calibration, a stereovision camera can deliver high-accuracy, real-time 3D imaging that supports applications across robotics, industrial automation, inspection, and autonomous navigation, bridging the gap between visual perception and intelligent machine vision.
