Industrial SWIR cameras collection

Industrial SWIR cameras

Shop industrial SWIR cameras from VA Imaging Inc. for machine vision, inspection, sorting and other imaging applications in the United States. Short-wave infrared imaging reveals contrast and material information that conventional visible-light cameras may not capture, making SWIR useful for semiconductor inspection, moisture detection, material identification and other industrial quality-control applications.

Compare SWIR cameras by sensor, resolution, frame rate, interface and price to find a model that fits your imaging requirements. For applications that do not require short-wave infrared imaging, you can also explore our complete range of industrial machine vision cameras.

With our office in Charlotte, North Carolina, VA Imaging Inc. supports customers throughout the United States with the selection of SWIR cameras, compatible lenses and other machine vision components.

SWIR camera products

What is SWIR?

A SWIR camera is a specialized camera that detects short-wave infrared light beyond the wavelengths normally visible to the human eye.

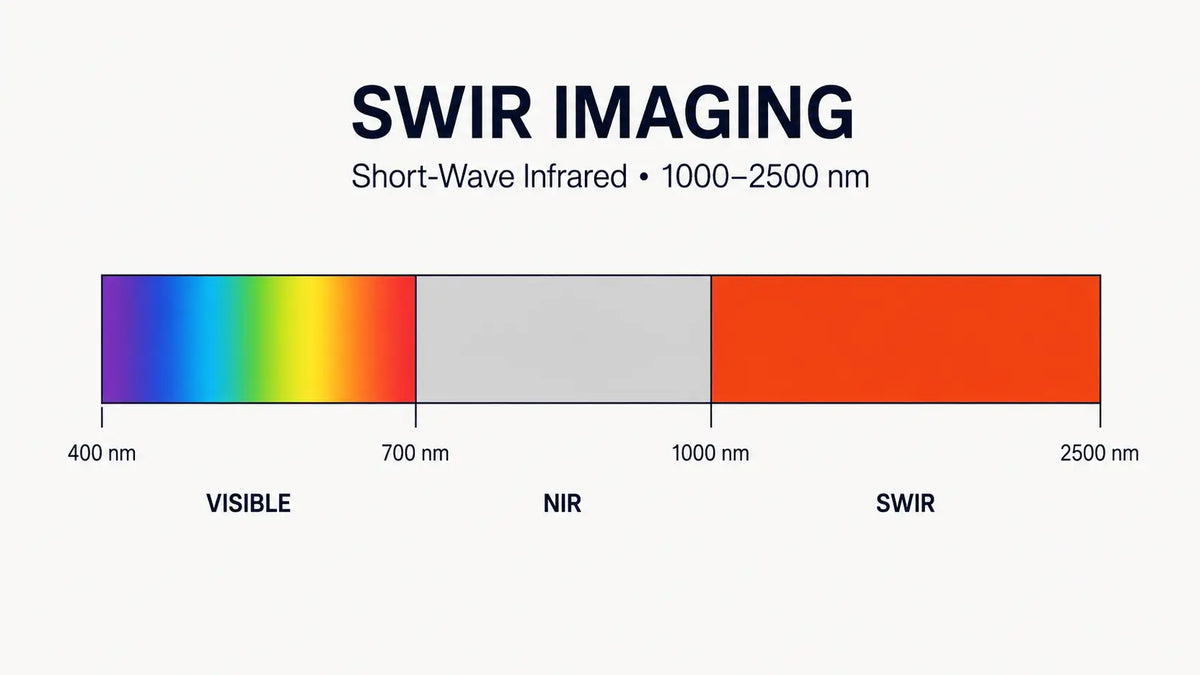

SWIR generally refers to wavelengths of approximately 900 to 2500 nm. Industrial InGaAs SWIR cameras commonly operate across a narrower portion of this spectrum, often extending to approximately 1700 nm.

The additional spectral information available in the SWIR range can reveal differences that are difficult or impossible to detect with a conventional visible-light camera. Depending on the material, illumination and wavelength, SWIR imaging can highlight moisture, distinguish materials and provide visibility through materials such as silicon.

Visible-SWIR cameras extend this capability by detecting both visible and short-wave infrared wavelengths with one imaging system.

How does a SWIR camera work?

A SWIR camera creates an image by measuring short-wave infrared light that is reflected, absorbed or transmitted by the object being inspected.

This is an important difference between SWIR imaging and conventional thermal imaging. In many industrial SWIR applications, the camera observes how materials interact with external light rather than simply measuring emitted heat.

Different materials have different absorption, reflection and transmission characteristics at different wavelengths. These differences create image contrast that may not exist in visible light.

For example, moisture absorbs strongly at certain SWIR wavelengths, while silicon becomes more transmissive at suitable wavelengths. This allows a SWIR camera to reveal information about material composition or internal structures that a standard industrial camera may not capture.

Very hot objects can also emit radiation within the SWIR range, allowing SWIR imaging to be used for selected high-temperature monitoring applications.

SWIR camera sensors for industrial imaging

A SWIR camera sensor determines the spectral sensitivity, resolution, pixel size and imaging capabilities available to the machine vision system.

Industrial SWIR cameras commonly use InGaAs sensors because InGaAs photodiodes are sensitive to short-wave infrared wavelengths beyond the useful range of conventional silicon-based visible image sensors.

The SWIR camera collection from VA Imaging Inc. includes models using Sony SenSWIR sensors such as the IMX990, IMX991, IMX992 and IMX993. For more information about sensor technologies used across industrial imaging, explore our camera image sensor knowledge center.

InGaAs and other SWIR sensor technologies

SWIR image sensors can use different detector technologies, including InGaAs and newer approaches such as colloidal quantum dot, or CQD, technology.

The cameras in this collection use established Sony SenSWIR sensor technology. Sony SenSWIR combines InGaAs photodiodes with silicon readout circuits, allowing the sensors to detect SWIR wavelengths while also extending sensitivity into the visible range.

When selecting a SWIR camera, the most important consideration is not the detector technology alone. Resolution, wavelength sensitivity, pixel size, frame rate, interface and the requirements of the application should all be considered together.

Compare Sony SWIR camera sensors

The right sensor depends on the application. Higher resolution can provide more image detail, while sensor dimensions and pixel size also influence optical requirements and system design. Camera-level specifications such as frame rate and interface depend on the individual camera model, so compare the complete camera specifications rather than selecting a model based only on the sensor.

SWIR sensor Approx. resolution Sensor size Pixel size

Sony IMX991

0.34 MP

1/4"

5.0 µm

Sony IMX990

1.34 MP

1/2"

5.0 µm

Sony IMX993

3.21 MP

1/1.8"

3.45 µm

Sony IMX992

5.32 MP

1/1.4"

3.45 µm

SWIR camera applications

SWIR camera applications are particularly useful when visible-light imaging does not provide enough contrast or information about the material being inspected. Explore other machine vision applications and solutions to see how industrial cameras, lenses and lighting can be combined for different inspection requirements.

SWIR cameras can provide visibility through silicon at suitable wavelengths, making the technology valuable for semiconductor manufacturing and wafer inspection.

Structures, positioning marks and defects that may be hidden in visible-light images can become detectable using the appropriate SWIR wavelength, lens and illumination.

This makes SWIR imaging relevant to applications including wafer positioning, alignment, inspection and other semiconductor quality-control processes.

SWIR cameras can detect differences in moisture because water absorbs light strongly at specific short-wave infrared wavelengths.

Around 1450 nm, for example, water absorption can create strong contrast between areas with different moisture content.

This characteristic can support applications such as food inspection, agricultural inspection, moisture detection, foreign-material detection and product sorting.

SWIR cameras can help distinguish materials based on differences in their spectral absorption and reflection characteristics.

Materials that appear almost identical to a conventional color camera can produce different contrast under selected SWIR wavelengths.

This makes SWIR imaging useful for industrial material sorting, recycling, contaminant detection and quality control. Depending on the wavelength and imaging setup, SWIR can assist in distinguishing materials such as different plastics, textiles or other substances that are difficult to classify by visible color alone.

SWIR imaging can be used in photovoltaic and solar-panel inspection to identify information that is difficult to capture with a conventional visible camera.

One example is electroluminescence inspection, where the emission from photovoltaic cells can be captured to help identify abnormal or defective areas.

SWIR imaging can provide visibility through certain packaging and resin materials that appear opaque under visible light.

This can support inspection of package contents and, with suitable materials and wavelengths, fill-level inspection in applications such as food, beverage, pharmaceutical and industrial production.

SWIR imaging can reduce the effect of some airborne particles compared with visible-light imaging.

Depending on the conditions and wavelength, this can improve image contrast through mist, smoke or haze and provide additional information in applications where a conventional visible camera has limited visibility.

Visible-SWIR cameras

A Visible-SWIR camera combines visible and short-wave infrared sensitivity in one imaging system.

Instead of using one camera for conventional visible imaging and a separate camera for SWIR, a Visible-SWIR sensor can capture information across both spectral regions.

This can simplify machine vision systems that require conventional image information together with SWIR contrast.

Visible-SWIR imaging can be especially useful when an inspection must first identify an object using visible information and then analyze a material property using short-wave infrared wavelengths.

VA Imaging Inc. offers Visible-SWIR cameras with different Sony sensors, resolutions, frame rates and industrial camera interfaces.

Components of a SWIR vision system

A complete SWIR vision system typically requires more than the SWIR camera alone. The camera, lens, illumination and any optical filters should be selected together for the required wavelength and inspection task.

The camera determines the sensor, resolution, acquisition speed and available interface. The correct model depends on the size of the inspected feature, production speed and required wavelength sensitivity.

Use a lens designed for the wavelength range required by the application.

Conventional machine vision lenses are often optimized for visible wavelengths and may not provide the same optical performance in the SWIR range. Visible-SWIR systems covering a wider spectral range can also require optics designed to reduce wavelength-dependent focus shift.

Explore our dedicated SWIR lenses for industrial cameras when selecting compatible optics for a SWIR or Visible-SWIR imaging system.

Illumination determines which wavelengths reach the inspected object and can have a major influence on image contrast.

Broadband light sources can cover a wider spectral range, while narrowband SWIR LEDs can target specific wavelengths where a material has useful absorption or reflection characteristics.

VA Imaging Inc. offers dedicated SWIR illumination options, including industrial SWIR ring lights and industrial SWIR bar lights, with wavelength options for different material-inspection requirements.

You can also explore our complete range of machine vision lighting when designing the illumination setup for an industrial vision system.

The ideal illumination wavelength therefore depends on what the imaging system needs to detect.

Optical filters can isolate or block selected wavelength ranges.

In Visible-SWIR systems, a suitable filter can reduce unwanted ambient wavelengths and emphasize the spectral range where the inspected feature provides the strongest contrast.

Explore our range of machine vision lens filters when an application requires wavelength selection or additional control over incoming light.

Camera, lens, illumination and filter selection should therefore be considered as one imaging system rather than as independent components.

How to choose a SWIR camera

Choosing the right SWIR camera starts with the application and the feature or material that needs to be detected.

Before comparing individual camera models, determine the required wavelength, field of view, smallest feature size and inspection speed.

Important selection criteria include:

  • Resolution determines how many pixels are available across the inspected object. The required resolution depends on the smallest feature that needs to be detected and the total field of view.

    Sensor size and pixel size should also be considered because they affect lens selection and the optical design of the system.

  • Area-scan SWIR cameras capture complete two-dimensional images and are suitable for many machine vision, inspection and laboratory applications.

    Line scan imaging captures one line of pixels at a time and can be useful for continuously moving products or materials on a production line.

  • For moving objects and high-speed production processes, make sure the camera can acquire images fast enough to capture the required detail without limiting system throughput.

  • The camera is only one component of a SWIR imaging system. Lens transmission, illumination wavelength, filters, working distance and field of view should all be considered when selecting the complete setup.

  • The camera interface affects bandwidth, cable length, system architecture and integration.

    SWIR cameras in this collection are available with industrial interfaces including GigE Vision, 2.5GigE Vision, 10GigE Vision, CoaXPress and USB3 Vision.

    For more information about the available interface technologies, compare our:

    The appropriate interface depends on factors including bandwidth, cable length, acquisition speed and the architecture of the existing machine vision system.

SWIR camera price in the United States

SWIR camera prices in the United States generally range from several thousand dollars to tens of thousands of dollars, depending on the sensor, resolution, camera format, speed and interface.

The current U.S. VA Imaging Inc. collection includes SWIR camera models starting at approximately $4,700, while higher-resolution and higher-performance models can cost more than $20,000.

SWIR cameras typically cost more than conventional visible-light machine vision cameras because short-wave infrared imaging requires specialized detector technology and components.

For the latest SWIR camera price in USD, compare the current prices shown on the product cards above.

Buy a SWIR camera in the United States

To buy a SWIR camera in the United States, start by identifying the material, defect or property your imaging system needs to detect.

The most expensive or highest-resolution SWIR camera is not automatically the best choice. Selecting the correct sensor, wavelength, lens, illumination and interface is more important than evaluating the camera based on price alone.

VA Imaging Inc. offers industrial SWIR cameras for customers throughout the United States.

From our office in Charlotte, North Carolina, VA Imaging Inc. supports the United States market with product selection for SWIR cameras, lenses and related machine vision components.

Compare the SWIR camera models above or contact VA Imaging Inc. in the United States if you need help selecting the appropriate camera and optical components for your application.

SWIR Cameras applications

SWIR camera image of a silicon wafer inspection SWIR camera image showing material detection SWIR camera image for industrial inspection SWIR camera image showing container contents SWIR camera image distinguishing cooking oil from water

Frequently asked questions about SWIR cameras in the US

SWIR cameras are cameras that detect short-wave infrared wavelengths beyond the range visible to the human eye. In the United States, industrial SWIR cameras are used for applications such as semiconductor inspection, food and moisture inspection, material sorting, solar inspection and machine vision quality control.

SWIR cameras are more expensive than many conventional machine vision cameras because they require specialized short-wave infrared detector technology and optical components. InGaAs sensors, higher-resolution SWIR detectors and specialized system requirements can all increase the cost. Customers in the United States should compare the complete camera specifications and required imaging system rather than camera price alone.

An industrial SWIR camera in the United States can cost from several thousand dollars to more than $20,000. Current prices depend on factors including sensor, resolution, speed and camera interface. VA Imaging Inc. displays current U.S. prices in USD on the SWIR camera product cards above.

SWIR can see through certain materials that transmit short-wave infrared wavelengths, but it is not a general-purpose see-through technology. Depending on the wavelength and material, SWIR imaging can provide visibility through silicon, selected resins and some packaging materials. The result depends on material composition, thickness, illumination, sensor sensitivity and optics.
