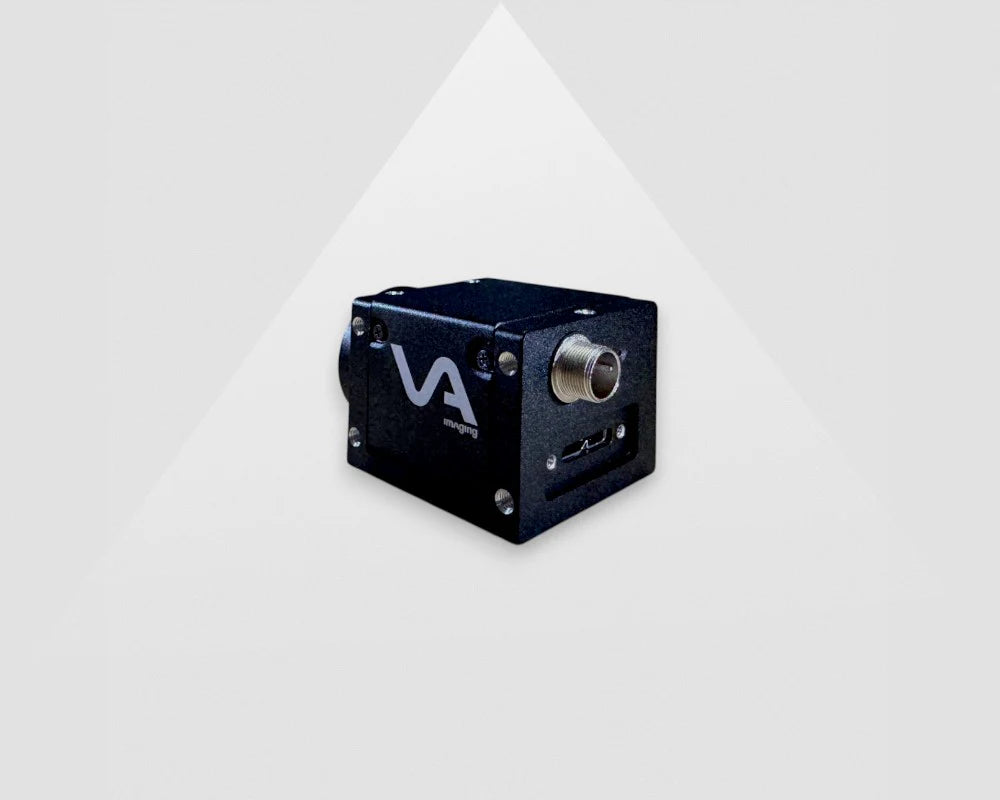

• ME2P-1231-32U3M-POL-VA-USB3-Vision-Camera Polarization camera

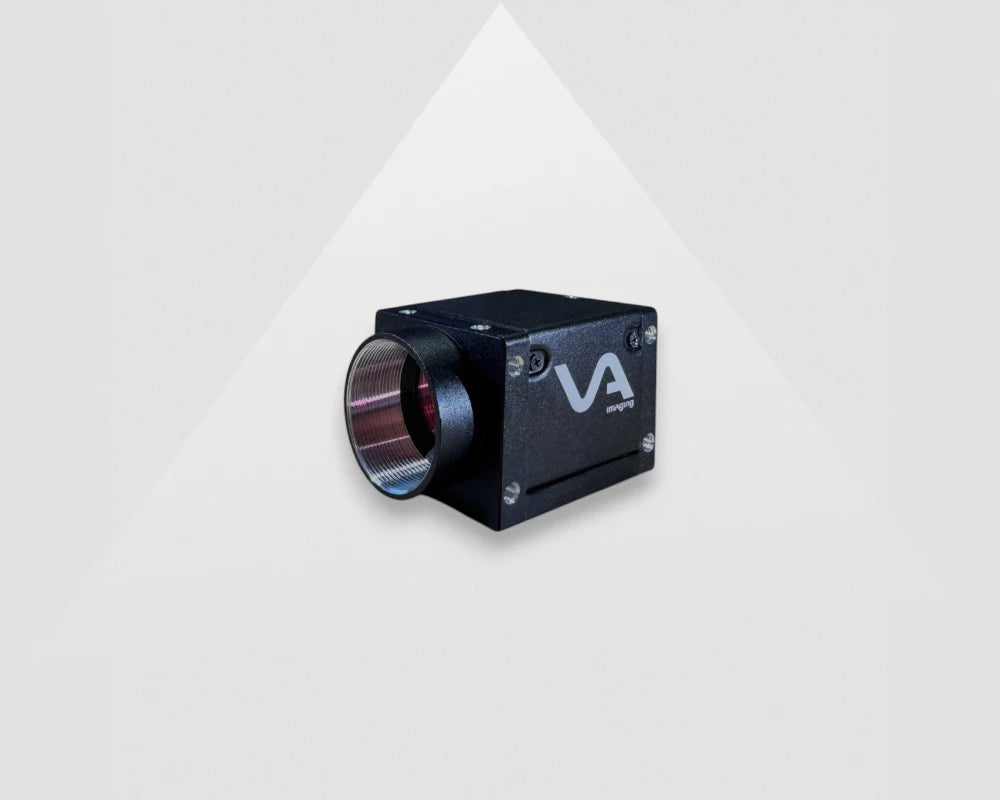

  • ME2P-1231-32U3M-POL-VA-USB3-Vision-Camera Polarization camera

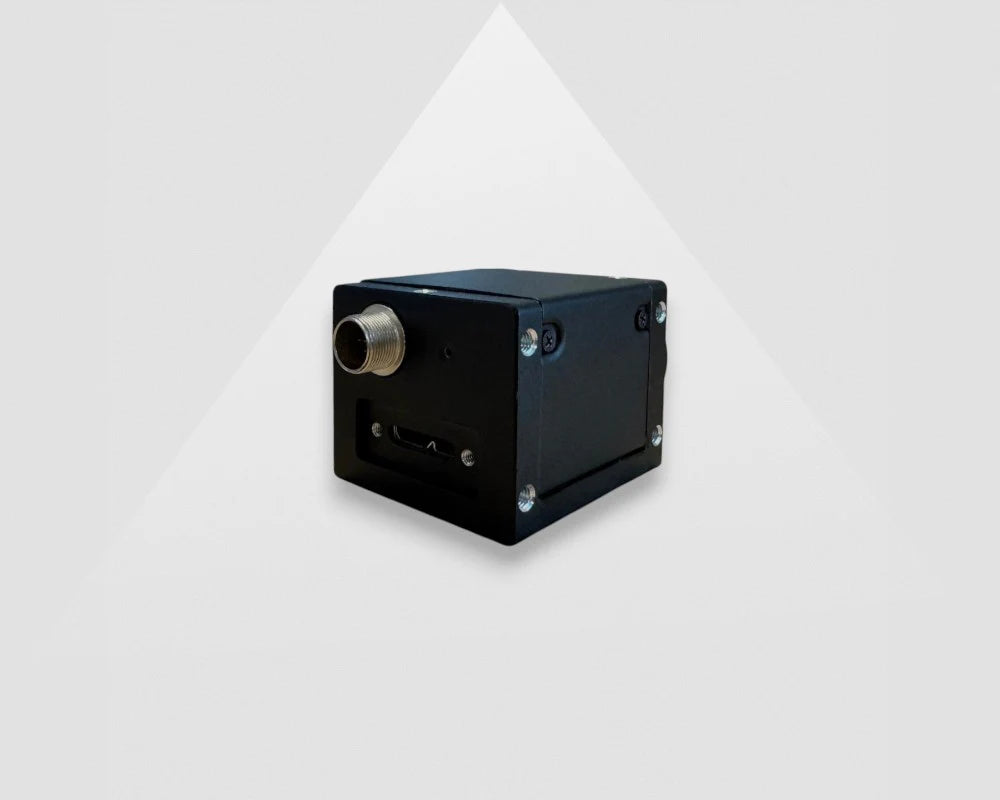

  • ME2P-1231-32U3M-POL-VA-USB3-Vision-Camera Polarization camera

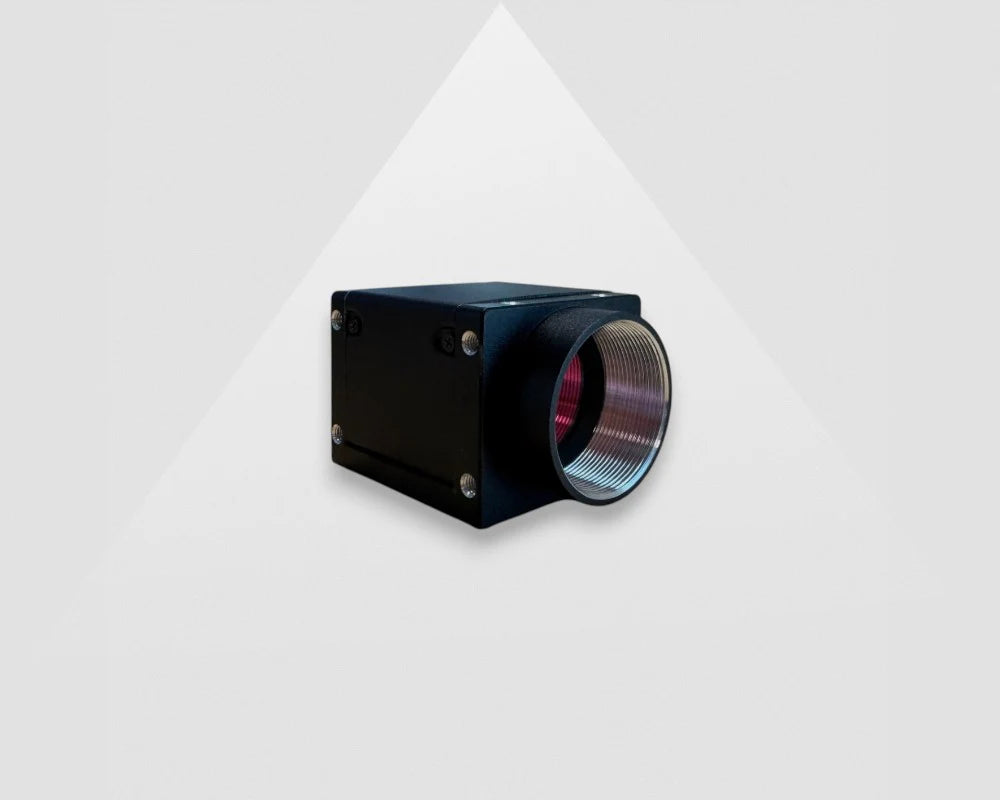

  • ME2P-1231-32U3M-POL-VA-USB3-Vision-Camera Polarization camera

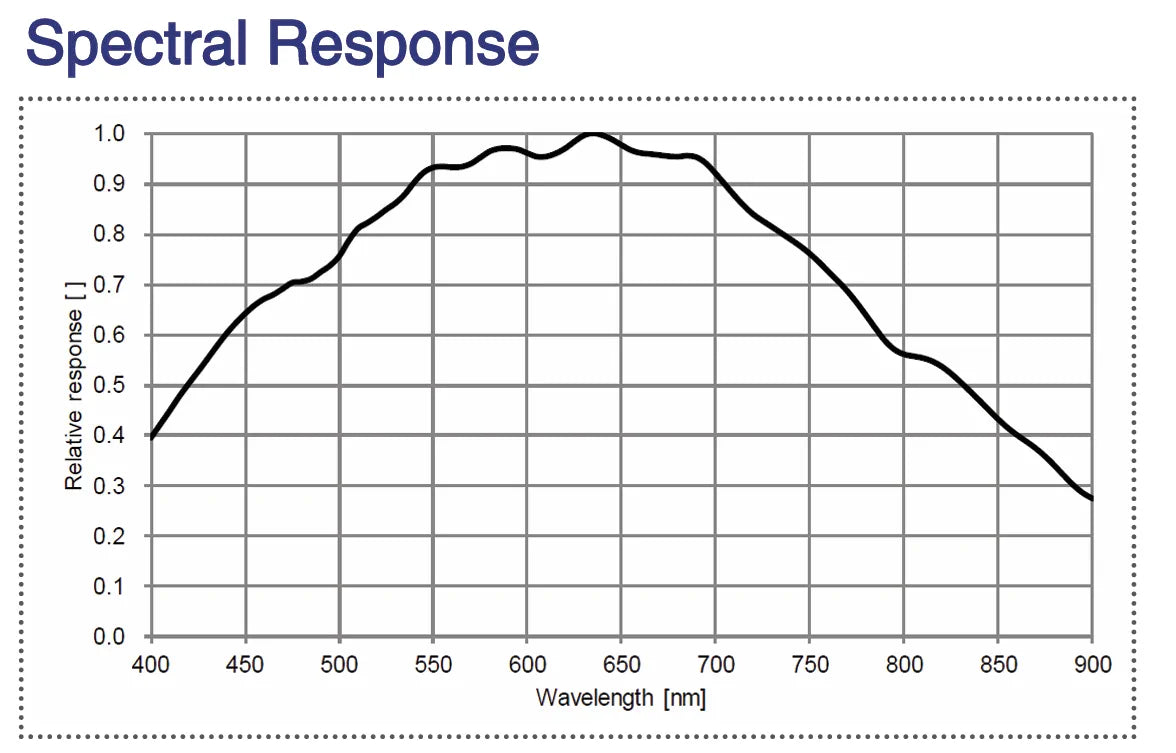

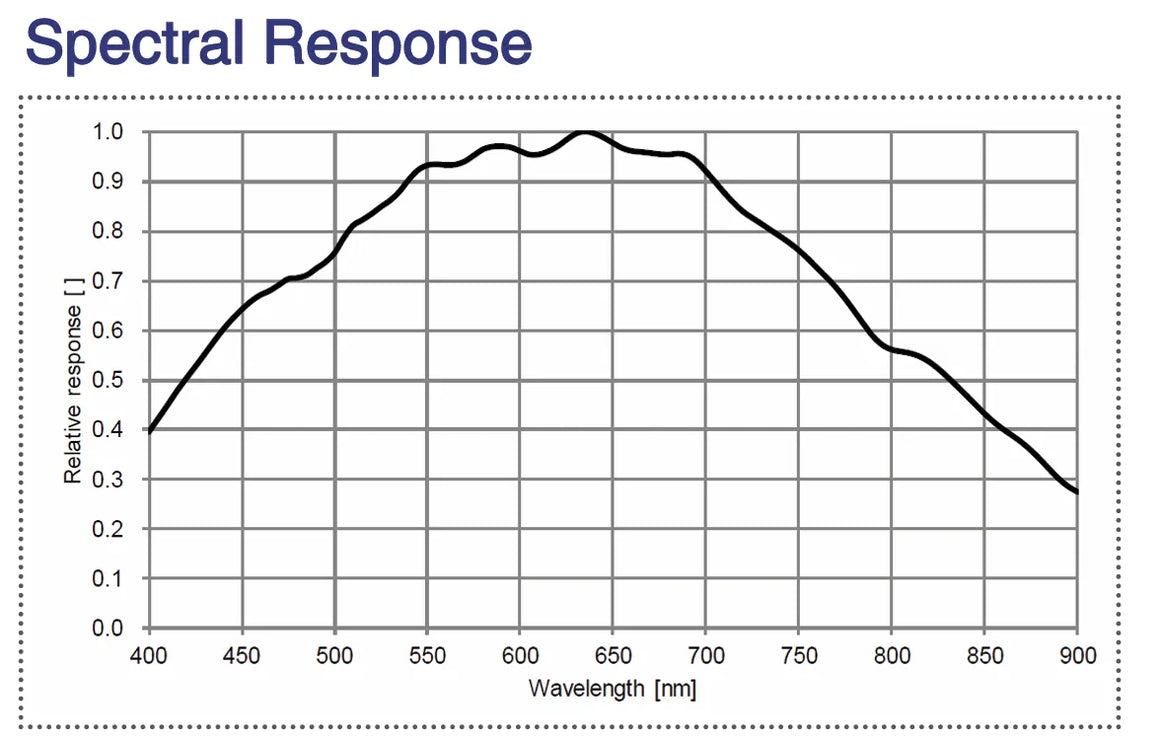

  • ME2P-1231-32U3M-POL-VA-USB3-Vision-Camera Polarization camera Spectral response

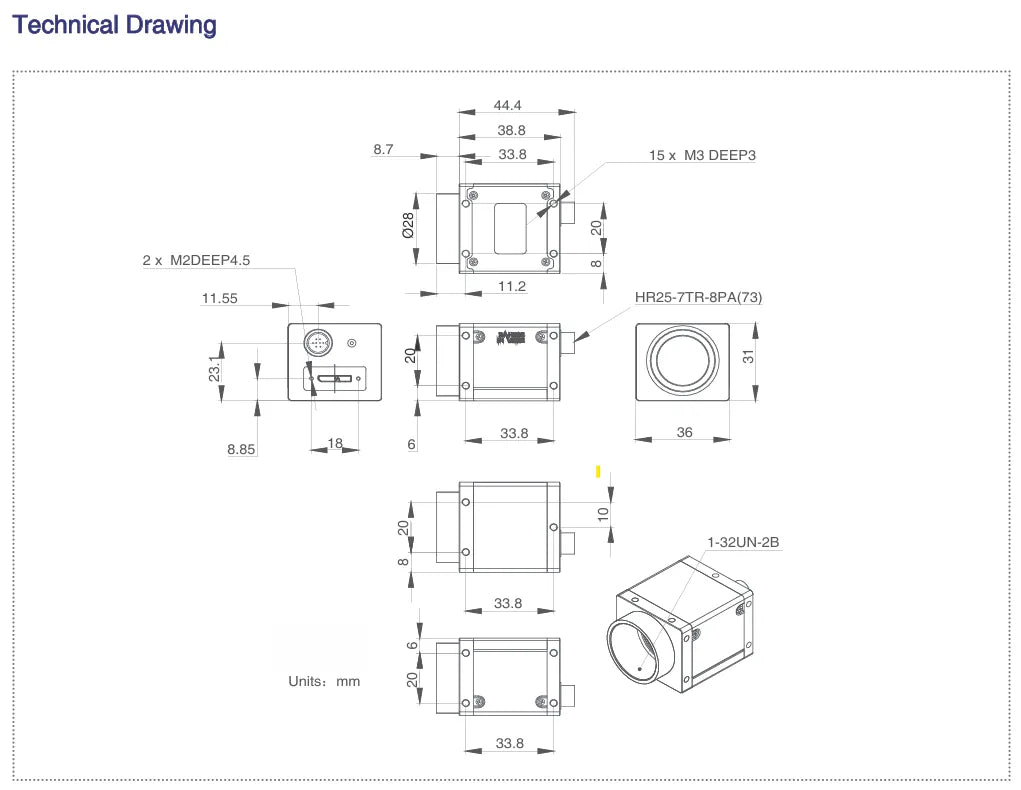

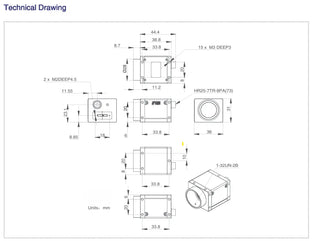

  • ME2P-1231-32U3M-POL-VA-USB3-Vision-Camera Polarization camera Mech drawing

ME2P-1231-32U3M-POL-VA Sony IMX253 Camera USB3 Vision

ME2P-1231-32U3M-POL-VA

  • IMX253MZR
  • 4096x3000
  • 32fps
  • 1.1 inch
  • Global shutter
  • CMOS
  • Mono
ME2P-1231-32U3M-POL-VA, IMX253MZR, 4096x3000, 32fps, 1.1 inch, Global shutter, CMOS, Mono ME2P-1231-32U3M-POL-VA
$6,139.00
Delivery time: Standard 3-6, Express 0-3 weeks
VA Manufactured
Industrial Quality
Description

USB3 Vision Camera IMX253MZR

The Mercury 2 Pro USB3 Vision Camera series is an industrial camera, with a USB3 Vision interface. This industrial vision camera series features high-resolution, low-noise global shutter sensors in a compact and robust housing. USB3 is a high-speed interface for industrial vision cameras, making it ideal for high-resolution and high-speed image acquisition. In our whitepaper about USB3 polarization camera you can find more information about the benefits of an industrial polarization camera.


The USB3 Vision Camera ME2P series is interesting for you when your application complies with the following conditions:

-          A compact industrial camera

-          Maximum cable length of 4.5 meters

-          Only one cable is required to connect the device

-          Dimensions are: 36x31x38.8mm

-          Hardware triggering / Digital I/O is required

-          Support for advanced image processing features, including polarization imaging

If more details are required, the manual of the ME2P USB3 Vision camera can be consulted.



More info

Specifications

Part number ME2P-1231-32U3M-POL-VA
Interface USB3 Vision
Resolution 4096x3000
Frame rate (fps) 32
Pixel size (um) 3.45
Color/Mono Mono
Sensor type Sony IMX253
Sensor size 1.1"
Shutter Type Global Shutter
Shutter time 24us~1s
ADC Bit Depth 8 bit, 10 bit, 12 bit
See all specs

MTBF, Warranty & Product Life Cycle

Each year, Daheng Imaging produces more than 100.000 industrial cameras according to the highest quality standards. The mean time between failure (MTBF) is more than 400.000 hours (45 years, 24/7). The industrial cameras are certified by TÜV Rheinland and have a 3-year warranty. After market introduction, every camera model is available for at least 7 years. Most cameras have a much longer product life cycle. For more information about our product life cycle management, check this article.

Monochrome Polarization Camera

The ME2P-1231-32U3M-POL-VA is a monochrome polarization camera based on the Sony IMX253MZR sensor, capable of capturing images of four different polarization directions simultaneously.

Polarization cameras are particularly suitable for inspecting reflective and transparent surfaces such as glass, metal, and plastic, which are difficult to inspect using standard monochrome or color cameras. Polarization imaging enhances contrast and reveals surface characteristics, stress patterns, and material differences that are otherwise difficult to detect. Example images captured with USB3 polarization cameras can be found in our polarization whitepaper.



With I/O (Hardware Trigger & Digital I/O)

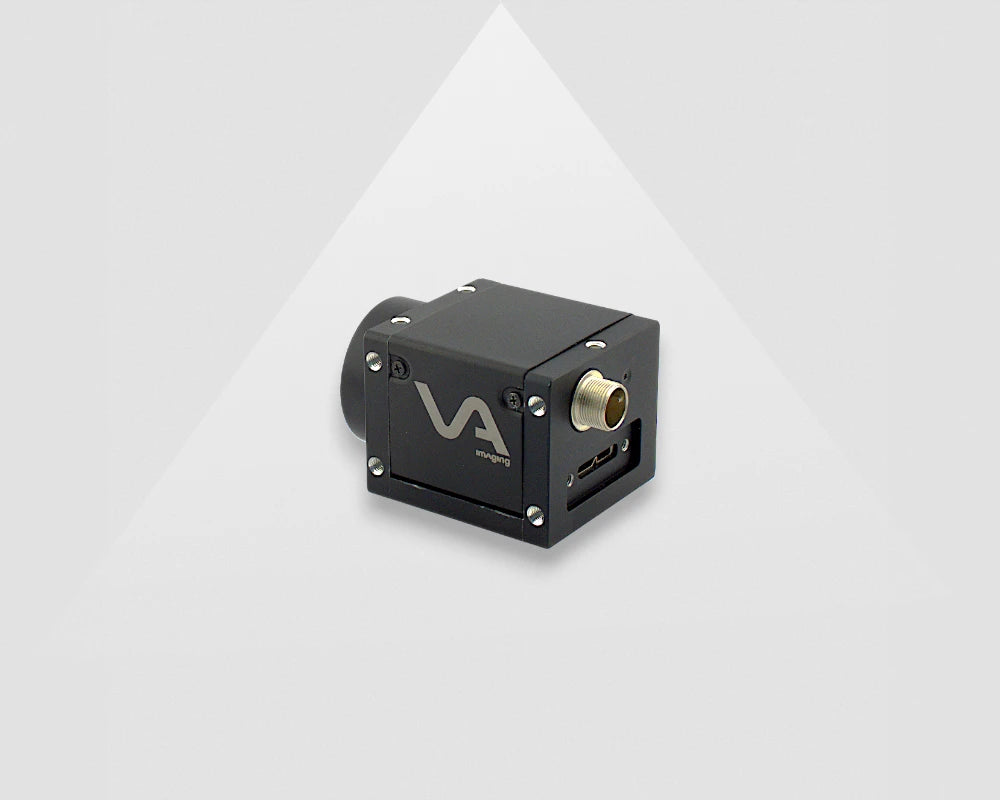

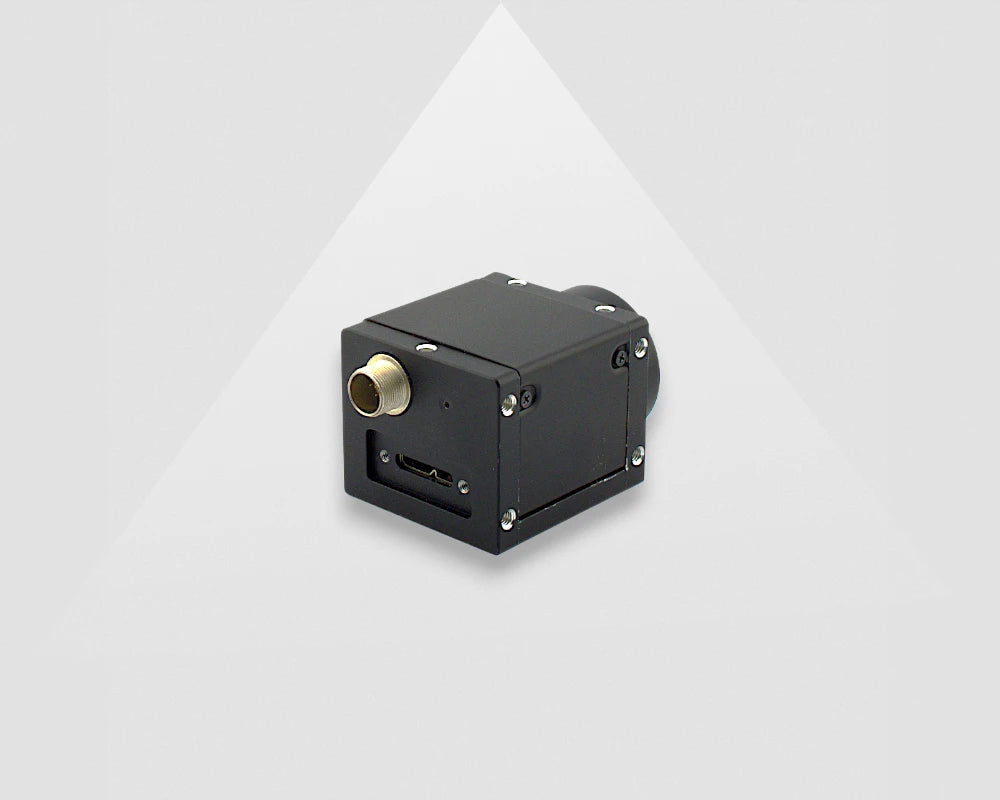

The I/O connector from a USB camera is an 8 pin HR25 Hirose connector, which is standard in the industrial machine vision market. This camera has an input that can be used as a hardware trigger for the device. The output of the camera can be used to trigger a light source, for example: LED. Furthermore, the camera has two GPIO’s (General Purpose Input/ Output) which can be programmed by using our SDK. The electrical diagrams to use the I/O connector are provided in the manual.



Sony IMX253MZR Polarization Image Sensor

This polarization camera uses the Sony IMX253MZR image sensor, featuring a pixel size of 3.45μm and a total resolution of 12.3 megapixels (4096 x 3000). The sensor integrates a four-directional polarization filter directly on the photodiodes.

This design enables the camera to capture four polarization angles in a single exposure, allowing the calculation of polarization angle and direction based on the intensity measured at each polarization orientation.

The polarization filter is arranged in a 2x2 pixel pattern, where each pixel is covered by micro-polarizer with a different orientation. When polarized light reaches the sensor, only the light component perpendicular to the filter orientation passes through each pixel, enabling accurate polarization analysis in one shot.

Polarization filter angles

Summarized, the polarization filter characteristics are:

-          When the filter blocks light at a 90º angle, it passes 0º through the filter.

-          When it blocks light at a 45º angle it passes 135º through the filter.

-          When it blocks light at an 135º angle it passes through 45º the filter.

-          Finally, when it blocks lights at an 0º angle it passes light through a 90º angle.

The model of this polarization camera is ME2P-1231-32U3M-POL-VA. It features a USB3 interface, a resolution of 4096 x 3000, a frame rate of 32.1 fps, a 1.1.” global shutter sensor, and a 3.45μm × 3.45μm pixel size.

Part number ME2P-1231-32U3M-POL-VA
Interface USB3 Vision
Resolution 4096x3000
Frame rate (fps) 32
Pixel size (um) 3.45
Color/Mono Mono
Sensor type Sony IMX253
Sensor size 1.1"
Shutter Type Global Shutter
Shutter time 24us~1s
ADC Bit Depth 8 bit, 10 bit, 12 bit
Pixel bit depth 8 bit, 10 bit, 12 bit
Digital Gain 0dB~24dB
Pixel data format Mono8 / Mono10 / Mono12
Synchronization Hardware trigger, software trigger
I/O 1 opto-isolated input line and 1 opto isolated output line, 2 GPIO
Operating temp. 0°C~45°C
Operating humidity 10%~80%
Mount C
Dimensions 36x31x38.8mm
SDK Software Windows / Linux / Android / 3rd party software
Power consumption <3.5W@5V
Conformity CE, RoHS, FCC, ICES, UKCA, USB3.0 Vision®, GenICam®
Megapixel 12
$6,139.00
